The Environment Changes the Requirements

An LED display is a system operating within a physical environment.

An indoor installation may benefit from:

• Controlled lighting
• Stable temperatures
• Protection from precipitation
• Shorter viewing distances
• Controlled access
• Easier service conditions

An outdoor installation may need to contend with:

• Direct sunlight
• Rain and moisture
• Wind
• Dust and contaminants
• Temperature extremes
• Wider viewing distances
• Greater exposure to the public

Those differences affect the display itself, as well as the infrastructure surrounding it.

---

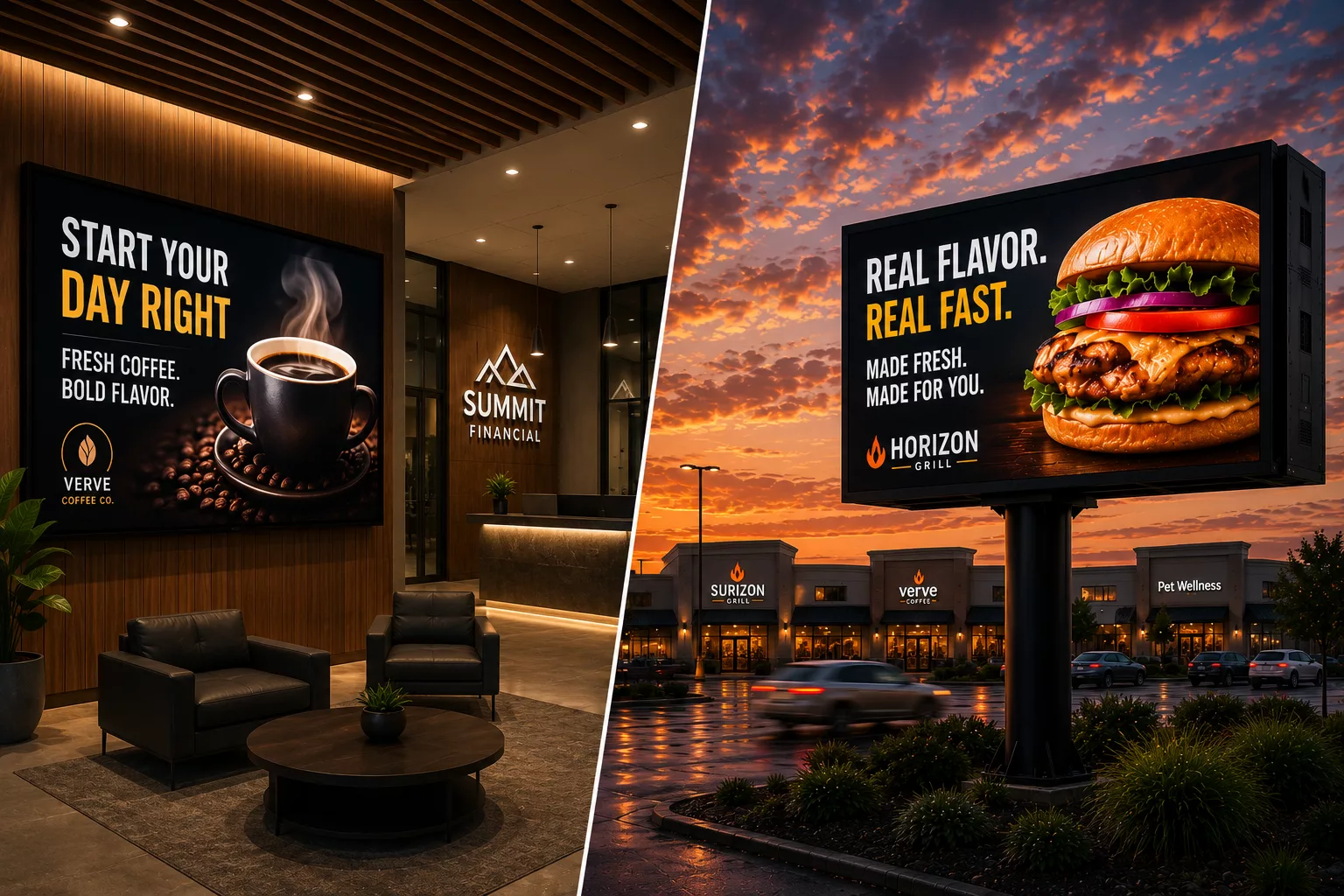

Indoor Displays

Indoor applications typically provide much more controlled operating conditions.

Examples include:

• Retail stores
• Banks
• Restaurants
• Hotels
• Healthcare facilities
• Lobbies
• Corporate environments
• Entertainment venues

Because ambient light is generally lower and more predictable, indoor displays typically don’t require the extreme brightness capabilities associated with outdoor displays.

Indoor viewers may also be much closer to the screen, making pixel pitch and image quality particularly important.

---

Outdoor Displays

Outdoor applications introduce a much broader range of conditions.

A display may be exposed to:

• Direct sunlight
• Rain
• Snow
• Humidity
• Dust
• Wind
• Seasonal temperature changes
• Accidental contact
• Vandalism or tampering

Outdoor displays therefore need to be designed for the environment in which they’ll operate—not simply placed inside a weather-resistant cabinet.

Outdoor performance is a system requirement.

---

Brightness Is One of the Biggest Differences

One of the most obvious differences between indoor and outdoor applications is ambient light.

An outdoor display may need to remain visible while competing with direct sunlight.

An indoor display may operate in an environment where ambient lighting is dramatically lower.

That means the appropriate brightness level can be very different between the two.

But, as we discussed in the Brightness & Visibility section:

More brightness isn’t automatically better.

The display should provide the appropriate level of brightness for the environment.

---

Weather Protection Matters

Outdoor displays must protect sensitive electronics from environmental exposure.

This can involve protection against:

• Water
• Moisture
• Dust
• Debris

Weather protection is often expressed through an IP rating, which identifies the degree of protection provided against solid particles and water ingress.

But an IP rating isn’t the entire outdoor-performance story.

The installation must also account for:

• Drainage
• Ventilation
• Thermal management
• Structural integrity
• Cable entry
• Service access
• Mounting conditions

Weatherproofing is part of the system—not just a specification on the cabinet.

---

Temperature and Thermal Management

Outdoor equipment may experience significant temperature swings throughout the year.

The display may operate in:

• Freezing winter conditions
• Hot summer conditions
• Direct afternoon sunlight
• Rapid temperature changes

Electronic components generate heat while operating, and the environment determines how that heat can be dissipated.

Proper thermal management is therefore an important part of long-term reliability.

Indoor environments tend to be more predictable, but high-output displays and tightly enclosed spaces can still require careful thermal consideration.

---

Viewing Conditions Are Different

Indoor and outdoor applications frequently have very different audience relationships.

Indoor

The audience may be:

• 5 feet away
• 10 feet away
• 20 feet away

and may have time to examine the content.

Outdoor

The audience may be:

• 100 feet away
• 200 feet away
• Several hundred feet away

and may be moving past the display.

This affects:

• Pixel pitch
• Display size
• Brightness
• Content design
• Viewing angle

That’s why the indoor/outdoor decision shouldn’t be made independently of the other technology specifications.

---

Installation Is Different, Too

An indoor display may be mounted to a wall, suspended from a structure, or integrated into an architectural environment.

An outdoor display may require:

• Structural support
• Foundation work
• Electrical service
• Underground conduit
• Wind-load considerations
• Permitting
• Crane or lift access
• Specialized installation equipment

The display is only one part of the project.

The environment determines much of the infrastructure required to put it there.

---

Maintenance and Service

Accessibility is another important consideration.

An indoor display may be located inside a controlled facility where technicians can easily access the equipment.

An outdoor display may require technicians to work:

• At significant heights
• Around traffic
• In weather
• With lifts or specialized equipment

That can affect the design of the display, service strategy, and long-term operating cost.

When evaluating an outdoor installation, maintenance shouldn’t be treated as an afterthought.

---

Indoor vs. Outdoor Isn’t Always Black and White

Some applications occupy a gray area.

Examples include:

• Covered outdoor walkways
• Enclosed patios
• Semi-enclosed retail environments
• Stadium concourses
• Outdoor entertainment spaces
• Window-facing indoor displays
• Displays behind glass

A display may technically be indoors but still experience significant sunlight or temperature variation.

Conversely, a covered outdoor display may have substantially different environmental exposure than a fully exposed roadside installation.

The physical location matters more than the label.

---

The Right Questions to Ask

Before selecting the technology, define the environment.

Where will the display be installed?

Inside, outside, or somewhere in between?

What will it be exposed to?

Sunlight, rain, dust, temperature changes, physical contact?

How will the audience encounter it?

Close-up, across a room, from a parking lot, or from a moving vehicle?

What conditions matter most?

Daylight visibility? Weather? Temperature? Viewing distance?

How will it be serviced?

Can technicians access the display easily and safely?

What infrastructure is available?

Power, structure, communications, mounting surfaces, and access?

Those answers establish the requirements for the display.

---

Don’t Specify the Display Before the Environment

A common mistake is to start with a product and then determine whether it can work in the proposed location.

The better sequence is:

Environment

↓

Audience

↓

Viewing Conditions

↓

Content Requirements

↓

Performance Requirements

↓

Display Specification

↓

Installation & Infrastructure

That approach reduces the likelihood of either over-specifying or under-specifying the technology.

---

The Economics of Indoor vs. Outdoor

Outdoor applications can require a greater overall investment because of the additional performance and infrastructure requirements.

That doesn’t necessarily mean outdoor technology is “more expensive” in a meaningful business sense.

The relevant question is:

What level of investment is justified by the opportunity?

If an outdoor display reaches thousands of potential customers every day and becomes a revenue-generating marketing asset, the additional environmental requirements may be entirely justified.

Likewise, spending money on outdoor capabilities that aren’t required for an indoor application doesn’t create additional value.

The environment should determine the investment—not the other way around.
