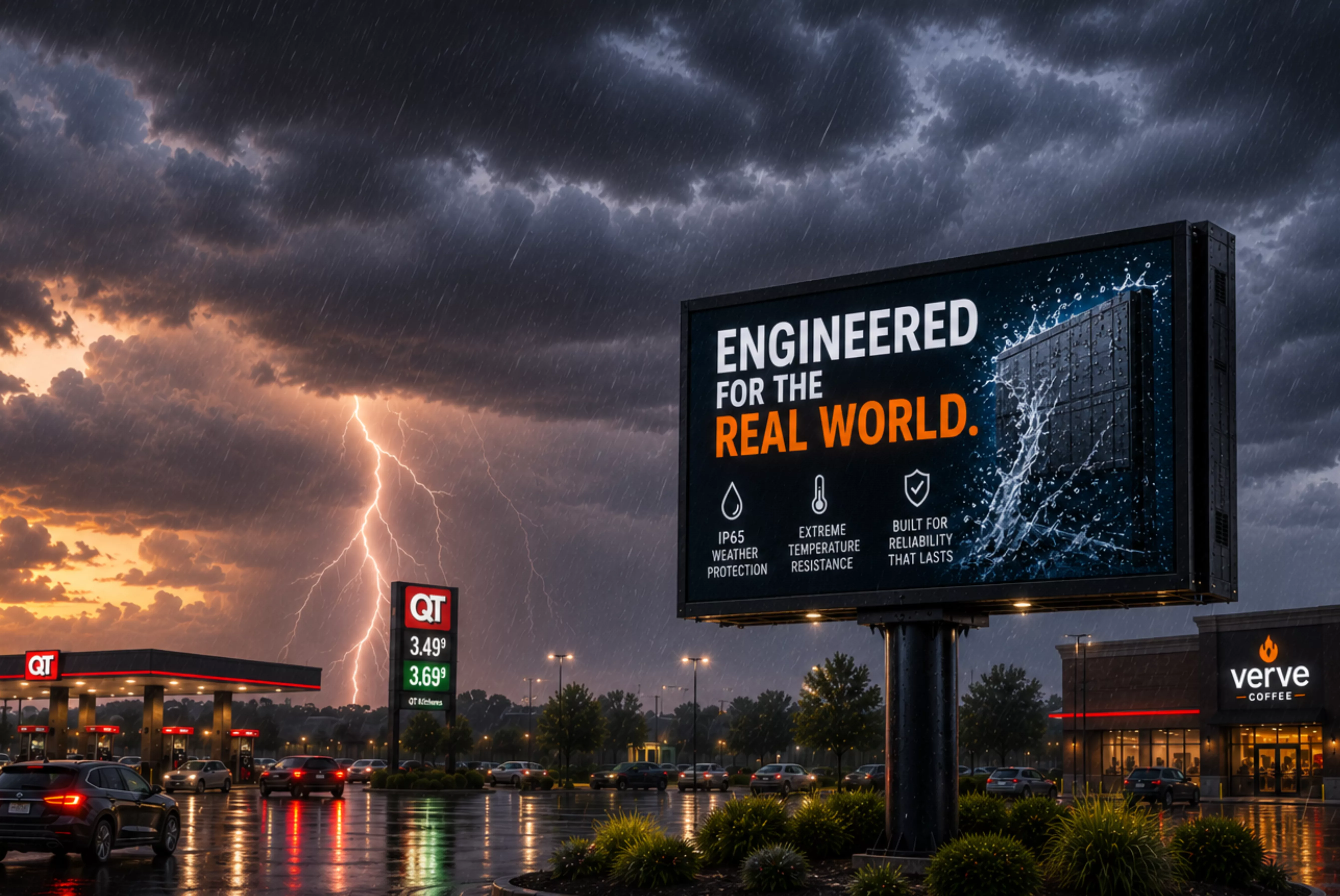

Outdoor Displays Live in the Real World

A commercial LED display may operate continuously for years while being exposed to conditions that indoor electronics never encounter.

Depending on the location, that can include:

• Rain and standing moisture
• Snow and ice
• High humidity
• Dust and airborne contaminants
• Direct sunlight
• Extreme heat
• Freezing temperatures
• Wind
• Rapid temperature changes

The equipment needs to be designed for those conditions from the beginning.

---

What Does Weather Protection Mean?

Weather protection refers to the measures used to prevent environmental conditions from damaging the display and its electronic components.

This can include:

• Sealed cabinet construction
• Water-resistant module design
• Protected electrical connections
• Proper cable entry
• Drainage
• Environmental seals
• Corrosion-resistant materials
• Appropriate enclosure design

One commonly referenced specification is the IP rating, which indicates protection against solid particles and water ingress.

But an IP rating is only one piece of the equation.

---

Understanding IP Ratings

IP ratings are typically expressed as two numbers.

The first relates to protection against solid particles such as dust.

The second relates to protection against water.

For example, an IP65 rating indicates a high level of protection against dust and protection against water projected from certain directions.

But it’s important not to interpret an IP rating as a complete guarantee of outdoor reliability.

The display still needs to be:

• Properly installed
• Properly sealed
• Properly maintained
• Appropriately ventilated
• Designed for its operating environment

A specification can describe a capability. It doesn’t replace proper system design.

---

Water Is Only One Challenge

It’s easy to think of outdoor protection as simply keeping rain out.

The actual challenge is more complicated.

Outdoor equipment can encounter:

Direct Rain

Water can reach the display from multiple directions depending on wind conditions.

Humidity

Moisture in the air can affect electronic components and connections over time.

Condensation

Temperature changes can create condensation inside or around equipment if the system isn’t properly designed.

Snow and Ice

Accumulation can introduce additional weight and moisture considerations.

Irrigation

Displays located near landscaping may encounter water from sprinklers that aren’t part of the normal weather environment.

Cleaning

Pressure washing or improper cleaning procedures can expose equipment to water in ways normal rainfall does not.

The environment needs to be considered as a whole.

---

Heat and Cold Matter Too

Environmental protection isn’t just about moisture.

Electronic components operate within specified temperature ranges, and outdoor displays can experience substantial temperature extremes.

A display may be exposed to:

• Direct summer sunlight
• Hot ambient temperatures
• Heat generated internally by electronics
• Freezing winter conditions
• Rapid temperature transitions

This makes thermal management an important part of outdoor display design.

---

Thermal Management

LED displays generate heat during operation.

That heat has to go somewhere.

Depending on the design, thermal management can involve:

• Cabinet ventilation
• Heat dissipation
• Fans
• Airflow management
• Component selection
• Temperature monitoring

Poor thermal management can contribute to shortened component life and reduced reliability.

This is one reason why outdoor display design shouldn’t be evaluated solely by the front face of the display.

What’s happening inside the cabinet matters, too.

---

Sunlight Creates Multiple Challenges

Direct sunlight affects more than visibility.

It can also contribute to heat accumulation within the display and increase the thermal load on the system.

This creates an interesting relationship between several specifications we’ve already discussed:

Brightness

affects daylight visibility.

Thermal management

helps deal with the heat generated by the system and its environment.

Cabinet design

helps protect the electronics.

Installation orientation

can influence environmental exposure.

The specifications don’t operate independently.

---

Wind and Structural Conditions

The display itself may be weather-resistant, but the structure supporting it also needs to withstand the environment.

Outdoor installations can be affected by:

• Wind loads
• Structural movement
• Foundation conditions
• Mounting systems
• Cabinet weight
• Sign height
• Local environmental conditions

This is especially important for larger freestanding displays.

The LED display is part of a larger physical system.

Reliability begins with the structure supporting it.

---

Materials Matter

Outdoor equipment needs to withstand long-term exposure to the environment.

Depending on the design, this can involve consideration of:

• Cabinet materials
• Fasteners
• Coatings
• Seals
• Connectors
• Electrical components
• Corrosion resistance

A component that performs perfectly indoors may not have the same long-term durability outdoors.

That’s why outdoor equipment needs to be evaluated as an integrated system, rather than simply by its LED modules.

---

Serviceability Is Part of Durability

Even well-designed equipment will eventually require maintenance.

That makes accessibility important.

Consider:

• How are modules replaced?
• How are power supplies accessed?
• Can components be serviced safely?
• Can individual sections be replaced?
• Does maintenance require specialized equipment?
• How quickly can a failed component be identified?

A display that is easy to service can have a significant advantage over one that is difficult or expensive to maintain.

Reliability isn’t simply avoiding failures. It’s also minimizing the consequences when something eventually needs attention.

---

Design for the Entire Lifecycle

The initial purchase price is only one component of the investment.

A more useful evaluation considers:

Initial investment

Installation

Energy consumption

Maintenance

Serviceability

Expected operating life

=

Total cost of ownership

A display that costs less initially but requires more frequent service may ultimately be the more expensive solution.

Conversely, paying more for capabilities that aren’t necessary doesn’t automatically create better value.

The objective is appropriate durability for the application.

---

Location Changes the Requirements

Not every outdoor environment is equally demanding.

A display installed in a sheltered location may experience very different conditions from one positioned:

• Beside an open roadway
• On a tall pole
• Near the coast
• In a dusty environment
• In an exposed parking lot
• In an area with extreme seasonal temperatures

This is another reason why there is no universal “best” outdoor display.

The location establishes the requirements.

---

Don’t Confuse Weatherproof With Maintenance-Free

This is an important distinction.

Weather protection reduces the risk of environmental damage.

It does not eliminate the need for maintenance.

Outdoor displays still benefit from:

• Routine inspection
• Cleaning
• Electrical checks
• Structural inspection
• Component replacement
• Software and system maintenance

A durable system is one that is designed to remain serviceable over time, not one that is expected to operate indefinitely without attention.

---

A Better Way to Evaluate Outdoor Durability

Instead of asking:

“Is this display weatherproof?”

Ask:

What environment will it operate in?

↓

What environmental conditions will it encounter?

↓

How is the display protected?

↓

How is heat managed?

↓

How is the structure protected?

↓

How are components serviced?

↓

What is the expected lifecycle?

↓

What does the total cost of ownership look like?

That produces a much more useful evaluation than simply comparing IP ratings.

A Display Is More Than a Static Picture

A static image places relatively little demand on a display.

Video is different.

When images change rapidly, the display must process and reproduce those changes quickly enough to maintain a smooth visual experience.

This becomes particularly important when the content includes:

• Fast-moving graphics
• Video
• Sports
• Animation
• Scrolling elements
• Camera footage
• Product demonstrations
• Rapid transitions

For applications built around dynamic content, video performance becomes an important part of the technology decision.

---

What Does “Video Performance” Mean?

Video performance encompasses several characteristics that influence how effectively a display reproduces moving content.

These can include:

• Refresh rate
• Processing performance
• Frame rate
• Image processing
• Color reproduction
• Motion handling
• Synchronization

These specifications are related, but they aren’t interchangeable.

A high refresh rate alone doesn’t guarantee excellent video.

The entire display system needs to work together.

---

Refresh Rate

One of the specifications you’ll frequently encounter when evaluating LED displays is refresh rate, typically expressed in hertz (Hz).

Refresh rate describes how frequently the display can refresh the image.

Higher refresh rates can be particularly beneficial for:

• Smooth motion
• Fast-moving content
• Camera capture
• Video production
• Broadcast environments
• Professional photography and videography

For ordinary advertising viewed directly by the human eye, however, simply choosing the highest refresh rate available may not create a meaningful improvement.

Once again, the application determines the requirement.

---

Why Refresh Rate Matters on Camera

One reason refresh rate receives so much attention is that LED displays are frequently photographed or recorded on video.

A display that looks perfectly acceptable to someone standing in front of it may produce undesirable effects when captured by a camera.

Depending on the display and camera system, these can include:

• Flicker
• Rolling bands
• Scan-line artifacts
• Uneven brightness
• Visible refresh patterns

This matters when your display is intended to appear in:

• Commercial video
• Social media content
• Livestreams
• News coverage
• Event photography
• Professional video production

If the display itself becomes part of the recorded content, video performance becomes more important.

---

Content Determines the Requirement

Not every application needs the same level of video performance.

Simple Advertising

A display primarily showing:

• Static promotions
• Simple graphics
• Logos
• Product images
• Basic transitions

may not require the same performance characteristics as a display dedicated to high-speed video.

Dynamic Advertising

If the display frequently uses:

• Video commercials
• Animated advertising
• Product demonstrations
• Motion graphics

then smooth motion becomes more important.

Professional Video Applications

Displays used for:

• Broadcast
• Studio environments
• Events
• Concerts
• Sports
• Camera-facing installations

may have substantially more demanding requirements.

The appropriate specification depends on the job.

---

Frame Rate and Refresh Rate Are Different

These two terms are often confused.

Frame rate refers to how many frames of content are produced or delivered per second.

Refresh rate refers to how frequently the display refreshes its image.

They work together, but they aren’t the same thing.

A source video may have a particular frame rate while the LED display operates at a much higher refresh rate.

Understanding that distinction helps prevent a common mistake: assuming that a display’s refresh-rate number alone tells you how smoothly the content will appear.

---

Processing Matters Too

The display controller and processing system play an important role in how content reaches the LED modules.

Processing can affect:

• Scaling
• Signal handling
• Synchronization
• Color reproduction
• Image timing
• Resolution management

This is particularly important when the display is connected to different content sources or when multiple displays need to operate together.

The LED modules are only one part of the video system.

The signal has to get to the display correctly before the display can reproduce it.

---

Color and Image Quality

Video performance isn’t only about motion.

The display also needs to reproduce the visual characteristics of the content accurately enough to preserve its intended impact.

This can matter particularly for advertising where:

• Brand colors are important
• Product photography is central
• Food imagery needs to look appealing
• Logos must remain recognizable
• High-contrast imagery is used

An LED display is ultimately a visual communication medium.

The quality of the reproduced image affects how the audience experiences the message.

---

Video Performance and Viewing Distance

The importance of video performance also depends on where the audience is located.

A display viewed from several hundred feet away may not reveal subtle motion artifacts that would be noticeable on a close-viewing indoor display.

Likewise, an audience standing only a few feet away may notice differences that aren’t apparent from a distance.

This is another example of why display specifications should be evaluated in the context of the application.

---

Video Performance and Content Strategy

There is an important connection between the technology and the marketing strategy.

If you intend to use the display primarily for:

• Static messages
• Simple promotions
• Brand awareness

your technical requirements may be relatively straightforward.

But if the display becomes an active advertising medium carrying:

• Video commercials
• Multiple advertisers
• Animated promotions
• Live content
• Time-sensitive campaigns

then the display and content-management system need to support a much more dynamic operating model.

The more important motion becomes to the communication strategy, the more important video performance becomes to the technology decision.

---

Don’t Pay for Performance You Won’t Use

This is another area where specification-driven purchasing can lead to unnecessary expense.

A display marketed with an extremely high refresh rate may sound attractive.

But ask:

What content will actually use that capability?

If the answer is primarily static graphics and simple advertising, the additional capability may not produce meaningful value.

On the other hand, if the display will be used extensively for video, live content, or camera-facing applications, higher performance may be completely justified.

The goal is not maximum specifications.

It’s appropriate performance for the application.

---

When Video Performance Becomes Critical

Video performance deserves particular attention when the display will be used for:

Broadcast & Camera Applications

The display must reproduce content cleanly when captured by cameras.

Sports & Entertainment

Fast-moving action places greater demands on motion reproduction.

Digital Advertising

Video commercials and animated creative require smooth transitions and motion.

Retail

Product demonstrations and promotional video can benefit from strong visual performance.

Live Events

Concerts, conferences, and other events often require coordinated, dynamic content across one or more displays.

---

A Better Way to Evaluate Video Performance

Rather than comparing refresh-rate numbers, start with the application.

What will be displayed?

Static graphics? Video? Live content?

↓

How quickly will the content change?

Simple transitions or fast-moving imagery?

↓

How close will the audience be?

Close viewing can reveal characteristics that distant viewers may not notice.

↓

Will cameras capture the display?

If so, camera-facing performance becomes more important.

↓

How will content be delivered?

What controller, processor, software, and signal sources will be involved?

↓

What level of performance is actually required?

Only then should the appropriate technology be specified.

---

Video Performance Is Part of the Content System

This is particularly important for Envoltage’s approach.

The display doesn’t operate independently from the content.

The complete system includes:

Content

↓

Content Management

↓

Processing

↓

Signal Distribution

↓

LED Display

↓

Audience

A weakness anywhere in that chain can affect the final experience.

That’s why selecting a display based solely on the LED module specifications can miss important parts of the equation.
