What Is Viewing Angle?

Viewing angle describes the range from which an LED display can be viewed while maintaining acceptable visual performance.

It is typically expressed in degrees:

• Horizontal viewing angle — visibility from side to side
• Vertical viewing angle — visibility above and below the display

A display with a wide viewing angle can maintain its image across a broader range of audience positions.

But, as with pixel pitch and brightness, a wider specification isn’t automatically more valuable.

It depends on the application.

---

Think About Where the Audience Is

Imagine a display positioned beside a busy roadway.

The audience isn’t standing directly in front of it.

Vehicles may approach from one direction, pass through the display’s primary viewing area, and then move away at an increasingly steep angle.

A display positioned inside a lobby creates a completely different viewing pattern.

People may approach from:

• Directly in front
• From the side
• Across the room
• Around a corner
• From multiple entry points

The display needs to perform across the positions that actually matter.

---

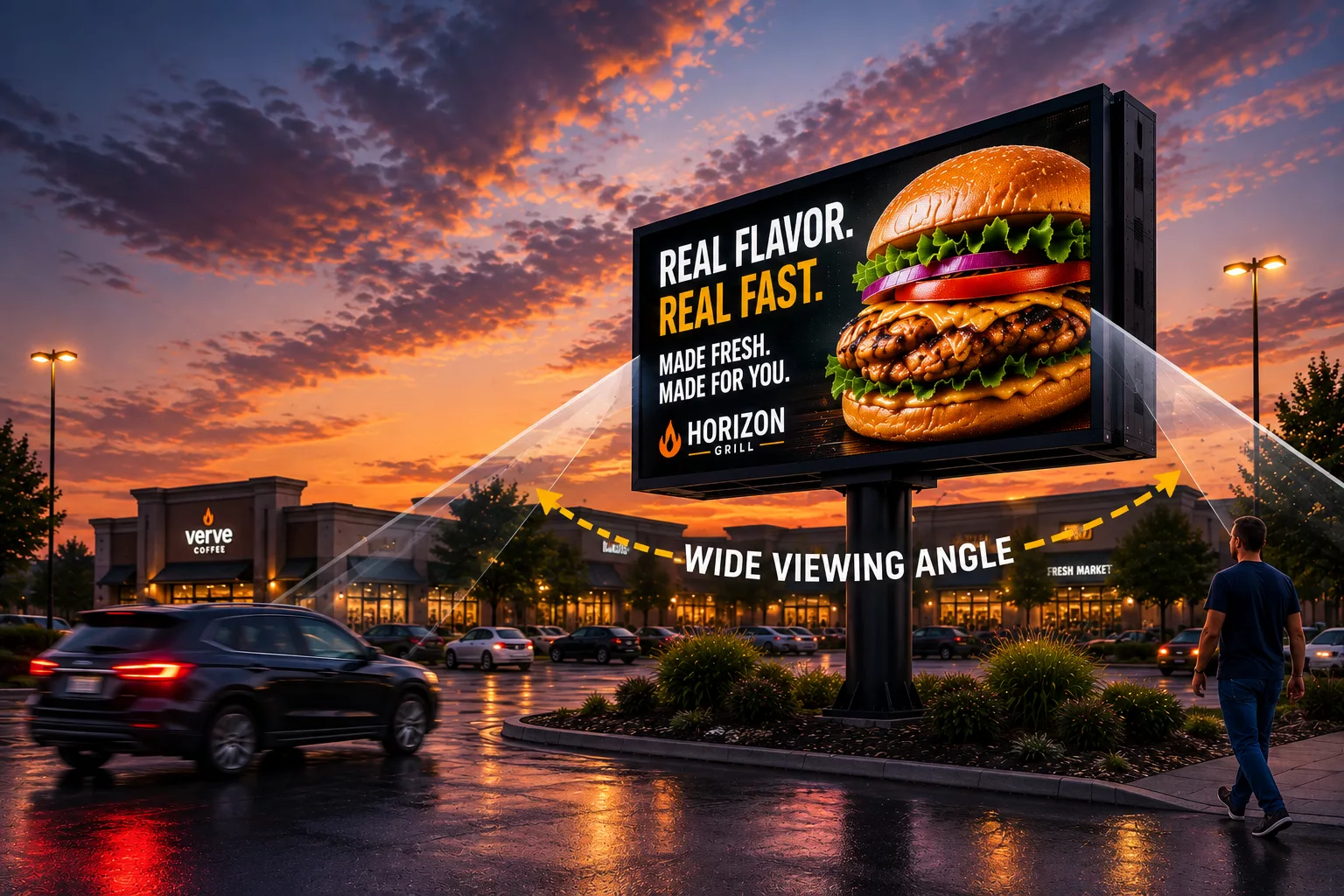

Horizontal Viewing Angle

Horizontal viewing angle is particularly important for applications where the audience moves laterally across the display’s field of view.

Examples include:

Roadside Displays

Drivers may encounter the display before reaching the optimal viewing position and continue seeing it as they pass.

Retail Environments

Customers may approach from different aisles or walkways.

Shopping Centers

Traffic may flow across multiple lanes and directions.

Hospitality & Public Spaces

Guests may encounter a display while moving through a lobby, corridor, or common area.

In these situations, a narrow viewing angle can limit the effective audience.

---

Vertical Viewing Angle

Vertical viewing angle becomes important when the audience and display aren’t positioned at the same elevation.

Consider:

• Elevated roadside displays
• Displays mounted above entrances
• Stadium and venue applications
• Large indoor installations
• Displays viewed from balconies or multiple floors

A display may have excellent horizontal visibility while providing less effective performance from significantly above or below its centerline.

The physical relationship between the display and the audience matters.

---

Wide Viewing Angle Doesn’t Replace Good Placement

A common misconception is that a very wide viewing angle can compensate for poor positioning.

It can’t.

A display with excellent viewing characteristics can still be ineffective if:

• It’s blocked by another structure
• It is positioned too far off the traffic flow
• The audience approaches from an unexpected direction
• Trees or landscaping obstruct the view
• The display is mounted too high or too low
• The viewing distance is inadequate

Viewing angle is part of placement—not a substitute for it.

---

Viewing Angle and Brightness

Viewing angle can also interact with perceived brightness and color performance.

As the viewer moves away from the display’s optimal viewing position, visual characteristics can change depending on the technology.

Potential effects can include:

• Reduced perceived brightness
• Changes in color consistency
• Reduced contrast
• Less uniform imagery

This becomes especially important when the display is intended to communicate visually rich advertising content.

A viewer doesn’t experience the specification sheet.

They experience the image from wherever they happen to be standing or driving.

---

Viewing Angle and Content

The content strategy should also reflect the way the audience sees the display.

For audiences approaching from a variety of angles, content should generally remain:

• Large
• Simple
• High contrast
• Visually dominant
• Quickly understandable

Fine details that are only visible from directly in front may have little value if most of the audience encounters the display from an angle.

This reinforces an important principle we’ve already established:

The technology and the content have to work together.

---

The Physical Location Matters

Before selecting a viewing-angle specification, study the site.

Ask:

Where is the audience coming from?

Roadway? Parking lot? Entrance? Hallway? Waiting area?

How does the audience move?

Straight toward the display? Across it? Around it?

What percentage of the audience sees it from the side?

This may be more important than the theoretical maximum viewing angle.

Are there obstructions?

Buildings, landscaping, vehicles, architectural features, or other signs can reduce the effective viewing area.

Is the display elevated?

If so, vertical viewing characteristics may become more important.

---

A Simple Way to Think About It

Instead of asking:

“What’s the widest viewing angle available?”

Ask:

“From where will the audience actually see this display?”

Then map the viewing environment.

Audience position

↓

Audience movement

↓

Viewing distance

↓

Display orientation

↓

Potential obstructions

↓

Required viewing range

↓

Appropriate display technology

This keeps viewing angle connected to the application.

---

Viewing Angle and Audience Reach

One of the most interesting implications of viewing angle is that it can affect the effective audience area of a display.

A display doesn’t necessarily communicate equally well to everyone within a certain geographic radius.

The useful audience is defined by the combination of:

• Where people are
• How they move
• How far away they are
• How the display is oriented
• How clearly they can see it

A wider effective viewing area can therefore increase the number of opportunities for an audience to encounter the message.

But again, that benefit only matters if those additional viewing positions represent meaningful potential customers.

---

Don’t Over-Specify Viewing Angle

As with every other technology decision, more capability can cost more.

If virtually all of your audience approaches the display from directly in front, an exceptionally wide viewing angle may provide little incremental value.

If the audience approaches from multiple directions, however, it could become an important part of the specification.

The right question is:

How much additional audience value does the wider viewing range create?

That is a much better purchasing question than simply comparing specifications.

---

Viewing Angle Is a Site-Planning Issue

This is why viewing angle should be considered before the display is ordered.

A site analysis can identify:

• Primary traffic paths
• Secondary traffic paths
• Pedestrian movement
• Viewing distances
• Approach angles
• Display orientation
• Obstructions
• Elevation differences

Those observations help determine whether viewing angle is a major consideration—or a relatively minor one.
